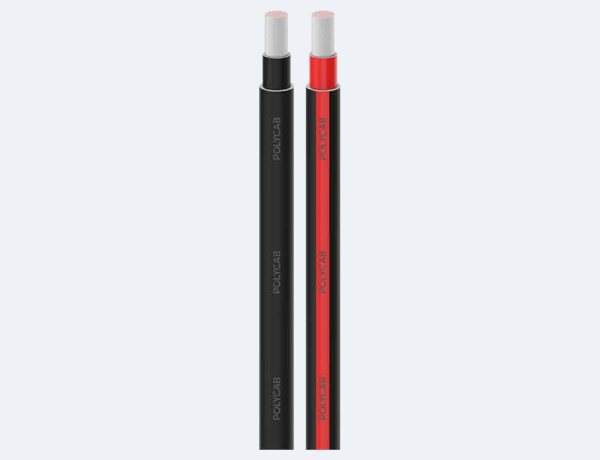

Polycab solar DC cable
EN 50618 H1Z2Z2-K photovoltaic cable rated 1.5 kV DC, in red and black, from 1.5 to 300 sq mm.
The DC cable between panels and inverter sits on a hot roof in sun and rain for 25 years, so it needs to be proper photovoltaic cable, not ordinary PVC wire. Polycab's H1Z2Z2-K cable is built to EN 50618 with a tinned copper conductor and electron-beam cross-linked, halogen-free insulation that resists UV and ozone.
Polycab has made solar DC cable since 2012 and is India's largest wire and cable manufacturer. Most rooftop strings use 4 sq mm or 6 sq mm; larger sizes are available for C&I and utility projects. Current ratings above are from Polycab's catalogue at 60 °C ambient.
Technical data
From Polycab's datasheet. Specifications may change; check the latest datasheet before design. Message us for the models in stock today.
| Size | 4 sq mm | 6 sq mm | 10 sq mm |
|---|---|---|---|
| Current, single cable in free air | 55 A | 70 A | 98 A |
| Current, two cables touching on a surface | 44 A | 57 A | 79 A |
| Max. DC resistance at 20 °C | 5.09 Ω/km | 3.39 Ω/km | 1.95 Ω/km |
| Overall diameter (approx.) | 6.0 mm | 6.5 mm | 7.5 mm |
Common to all models
| Standard | EN 50618, H1Z2Z2-K; TÜV Rheinland certified |
| Voltage | 1500 V DC nominal, 1800 V max. |
| Conductor | Tinned copper, class 5 flexible (IEC 60228) |
| Insulation / sheath | Electron-beam cross-linked, halogen-free, flame-retardant XLPO |
| Temperature | −40 °C to +120 °C conductor |
| Resistance | UV, ozone and hydrolysis resistant |
| Sizes | 1.5 to 300 sq mm |
| Colours | Red (+) and black (−) |
Common questions
4 sq mm or 6 sq mm for a home rooftop?
4 sq mm is usually enough for short residential string runs. For long runs from roof to inverter, or high-current TOPCon panels, 6 sq mm reduces voltage drop and losses.
Why not use ordinary PVC cable for DC?
Standard PVC cable is not rated for 1.5 kV DC or long-term UV and heat exposure. EN 50618 solar cable is designed for 25+ years on the roof and is what inspectors expect to see.
Do you sell in drums or cut lengths?
Message us with the size and length you need and we'll confirm availability and price.
