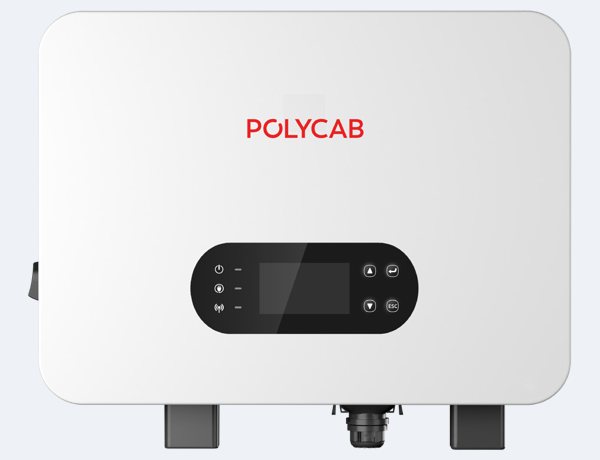

Polycab single phase hybrid inverter
Solar, battery and grid in one wall-mounted unit, in 3, 3.6, 5 and 6 kW. Built for PM Surya Ghar homes and shops that need power during cuts.
The Polycab PHIS-ESUQ series is a single phase hybrid inverter: it runs the solar panels, charges a 48 V battery and connects to the grid, all from one box. When the grid fails, it switches the backup loads to battery and solar in under 4 ms, so fans, lights, the fridge and Wi-Fi keep running.
That makes it a good fit for homes in Bihar, Jharkhand and West Bengal where power cuts are still common, and for shops and clinics that would otherwise run a conventional inverter or a diesel generator. The same unit can also export surplus solar to the grid where the DISCOM allows net metering with a hybrid system.
Technical data
From Polycab's datasheet. Specifications may change; check the latest datasheet before design. Message us for the models in stock today.
| Model | PHIS-3K0-ESUQ | PHIS-3K6-ESUQ | PHIS-5K0-ESUQ | PHIS-6K0-ESUQ |
|---|---|---|---|---|
| Rated power | 3.0 kW | 3.6 kW | 5.0 kW | 6.0 kW |
| Max. PV input power | 6.0 kW | 7.2 kW | 10.0 kW | 12.0 kW |
| MPPT trackers | 1 | 1 | 2 | 2 |
| Max. battery charge / discharge current | 70 A | 90 A | 120 A | 140 A |
| Backup output (no grid) | 3.3 kVA | 3.96 kVA | 5.5 kVA | 6.6 kVA |
| Backup peak, 10 s | 6.0 kVA | 7.2 kVA | 10.0 kVA | 12.0 kVA |
| Weight | 14.5 kg | 14.5 kg | 15.5 kg | 15.5 kg |
Common to all models
| Battery | 48 V nominal (40–60 V), lithium-ion or lead-acid |
| PV input | Max. 600 V, MPPT range 60–550 V, 20 A per MPPT |
| Grid / output | 220 / 230 / 240 V single phase, 50 Hz |
| Efficiency | 97.6% max, 96.2% European |
| Backup switchover | Under 4 ms |
| Parallel | Up to 6 units, on-grid and off-grid |
| 3-in-1 port | Generator, smart loads or an existing on-grid inverter |
| Enclosure | IP66, natural cooling, under 30 dB |
| Monitoring | LCD, Wi-Fi app, RS485, LAN, Bluetooth |
| Size | 560 × 415 × 204 mm, wall mounted |
| Standards | IEC 62109, IEC 61727, IEC 62116 and others (see datasheet) |
| Warranty | 10 years with a Polycab battery, 5 years with another battery |
Common questions
Which battery works with the Polycab single phase hybrid inverter?
Any 48 V lithium-ion or lead-acid battery in the 40–60 V range is supported. With the Polycab 5 kWh LFP battery the inverter warranty is 10 years; with another battery it is 5 years.
Can I use it for a PM Surya Ghar system?
The PM Surya Ghar subsidy is calculated on the solar panel capacity, not the inverter, so a hybrid system can qualify as long as the panels are DCR and your DISCOM approves the net-metering arrangement. Confirm the meter set-up with NBPDCL, SBPDCL, JBVNL or your DISCOM before installation.
How many panels can I connect?
The inverter accepts up to twice its rated power in solar (for example up to 6 kW of panels on the 3 kW model), within the 600 V and 20 A per-MPPT limits on the datasheet.
Also useful
Your local Polycab stockist
- Ready stock in Patna and Kolkata. Pick up or order locally instead of waiting on long-distance shipments.
- One supplier for the whole system. Inverters, batteries, modules and DC cable from one brand.
- Datasheets on hand. Every product above links to Polycab's official specs.
- A local team. Call or WhatsApp us for pricing, availability and support.
Get today's price and stock
Tell us the product, rating and quantity you need. We'll confirm stock and price, and arrange pickup or delivery.
