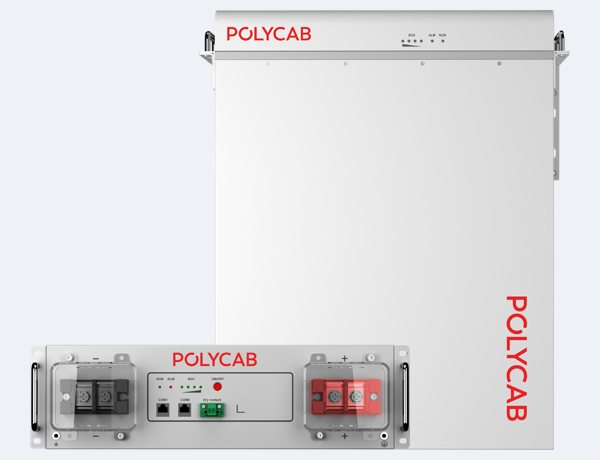

Polycab 5 kWh lithium battery
A 48 V lithium iron phosphate (LFP) battery for Polycab hybrid inverters, with over 6,000 cycles and room to grow to 150 kWh.
The PHLVB-5K-AG3 is Polycab's low-voltage lithium battery for its hybrid inverters. It uses LFP cells, the chemistry most solar installers now prefer for its long cycle life and thermal stability, and each pack has its own battery management system.
As a rough guide, the 5 kWh of usable energy can run about 500 W of essential load (fans, lights, a fridge and Wi-Fi) for around 10 hours, or about 1 kW for around 5 hours, before inverter losses. Add more batteries in parallel when a home or shop needs longer backup.
Technical data
From Polycab's datasheet. Specifications may change; check the latest datasheet before design. Message us for the models in stock today.
| Model | PHLVB-5K-AG3 |
|---|---|
| Nominal energy | 5.12 kWh |
| Usable energy | 5 kWh |
| Cell type | LFP (LiFePO4) |
| Operating voltage | 43.2 – 58.24 V |
| Charge current, nominal / max. | 60 A / 90 A |
| Discharge current, nominal / max. | 100 A / 150 A |
| Max. continuous discharge power | 7.2 kW |
| Cycle life | Over 6,000 (70% end of life) |
| Round-trip efficiency | 96% or better |
Common to all models
| Expansion | Up to 30 batteries in parallel, 150 kWh |
| Communication | CAN, with remote diagnosis and updates via the inverter |
| Mounting | Wall mount; floor and 19-inch rack options |
| Enclosure | IP20, for indoor installation |
| Temperature | Charge 0–55 °C, discharge −20–55 °C |
| Size / weight | 442 × 133 × 520 mm, 44 kg |
| Standards | IEC 62619, IEC 63056, IEC 60730, UN38.3 |
| Warranty | 10 years with a Polycab single phase hybrid, 8 years with a Polycab three phase hybrid |
Common questions
Is the battery covered by the PM Surya Ghar subsidy?
No. The subsidy is calculated on the solar panel capacity only. Batteries are quoted and paid for separately.
Can it be installed outdoors?
The battery is rated IP20, so it should be installed indoors or in a protected enclosure, away from rain and direct sun.
Which inverters does it work with?
It is designed for Polycab's single phase (PHIS-ESUQ) and three phase (PHIT-ETLV) hybrid inverters, which also give the longest combined warranty.
